Specification:
Main Specifications
Overall Dimensions
Operating Weight
1800 kg
Overall Length*Width*Height
3725*990*2300 mm
Bucket Capacity
0.06 m³
Track Grounding Length
1250 mm
Bucket Width
450 mm
Track Shoe Width
230 mm
Boom Length
1823 mm
Track Gauge
740 mm
Arm Length
1130 mm
Min Ground Clerance
160 mm
Performance
Min Front Swing Radius
1120 mm
Swing Speed
10 rpm
Tail Swing Radius
1080 mm
Travel Speed
0-2.2Km/h
Dozer Blade Width
990 mm
Grade Ability
25 °
Operating Range
Ground Pressure
34 Kpa
Max Digging Radius
3920 mm
Bucket Digging Force
15.2 KN
Max Digging Depth
2140 mm
Arm Digging Force
8.7 KN
Max Digging Height
3330 mm
Max Traction Force
12.5 KN
Max Dumping Height
2440 mm
Engine
Boom Offset (Left/Right)
240/460 mm
Model
Kubota
Boom Swing Angle L/R
73/47 °
Rated Power
14 kw/2200 rpm
Dozer Blade Size Width*Height
990*210 mm
Max Torque
107.8 N.m/rpm
Dozer Blade Lift/Digging
228/218 mm
Displacement
1.642 L
Pump type
gear pump
Cylinders
3
Discharge
227L/min
Bore and Stroke
88*90 mm/85*90 mm
Working cylinder×number
110mm×2
Cooling Type
Water

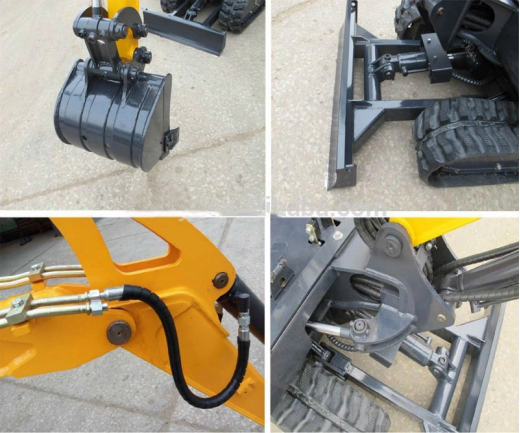

Details:

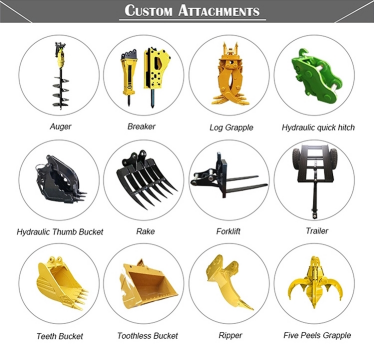

Attachments:
