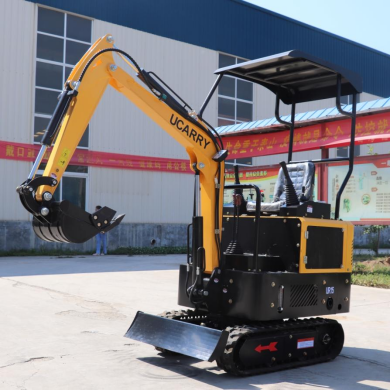

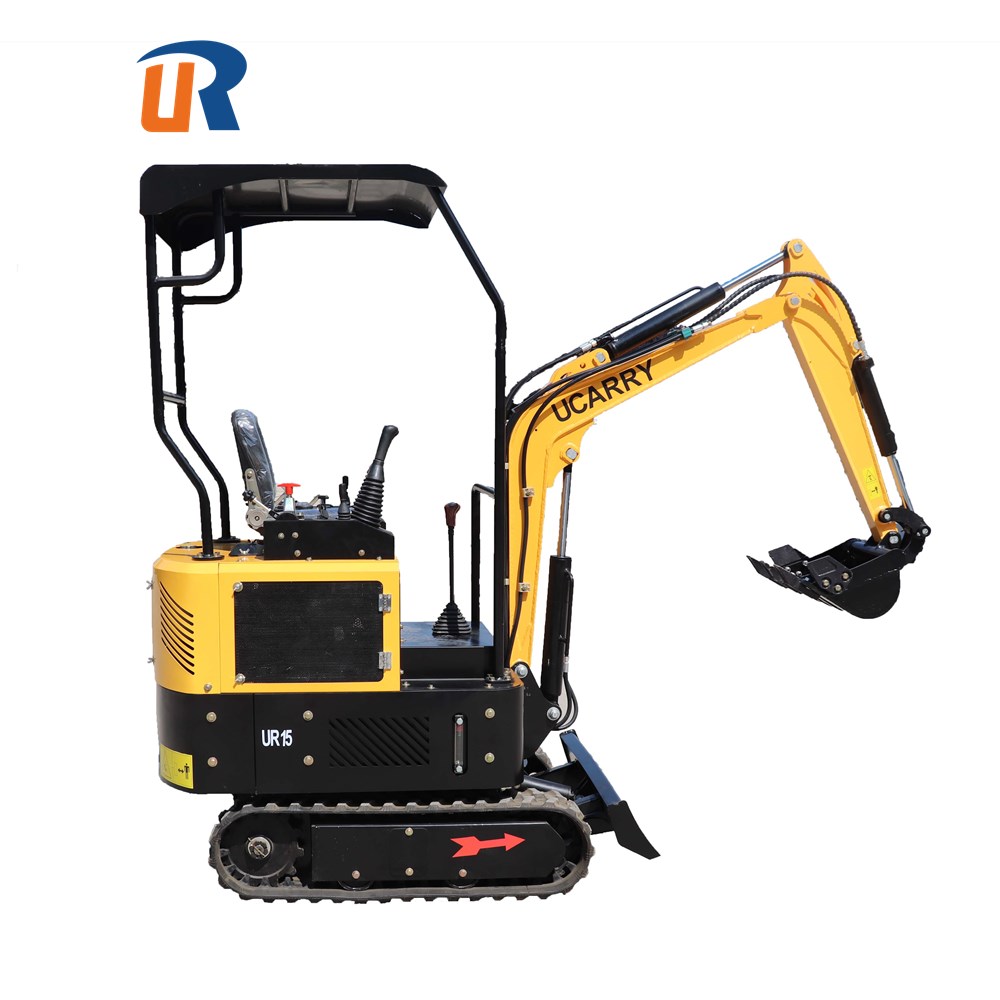

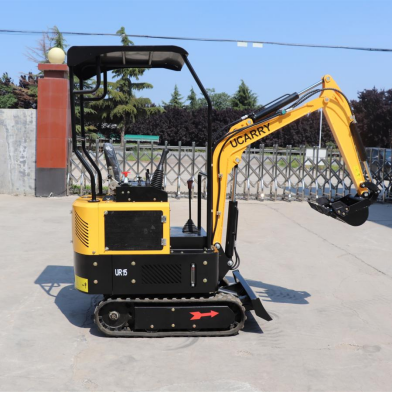

Excavator UR15

Model

UR15

Weight

1300kg

Digging bucket capacity

0.025cbm

Engine

Laidong 380

Bore stroke

three cylinder, water cool, diesel

Rated power

19 kw/3600r/min

Displacement

0.794 L

Travel speed

1.5km/h

MAIN DEMENSIONS

Overall dimension( LxWxH)

2150x980x1950 mm

Wheelbase

800 mm

Total length of track

1220mm

Platform ground clearance

375 mm

Platform back turning radius

733 mm

Chassis width

980 mm

Track width

180 mm

Chassis ground clearance

380 mm

OPERATING RANGE

Max. Digging depth

1650 mm

Max. Vertical digging depth

1375 mm

Max. Digging height

2350 mm

Max. Dumping height

1650 mm

Max. Digging radius on ground

2900 mm

Min. Rotation radius

1550 mm

Max. Upgrade height of bulldozer blade

150 mm

Max. Digging depth of bulldozer blade

180 mm
